Home / Faucet & Parts / Kitchen Faucet

WL-KFY7A

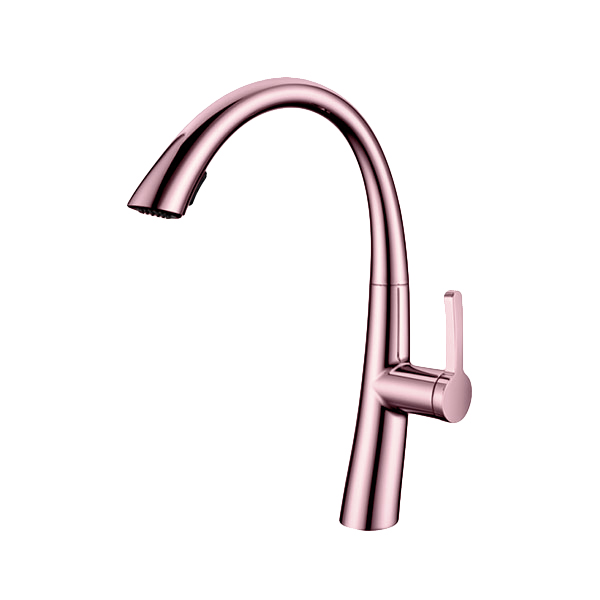

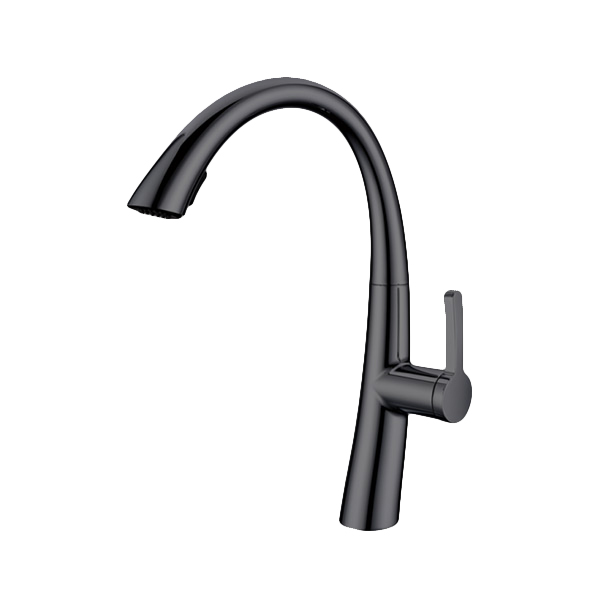

Single handle pull-down kitchen faucet

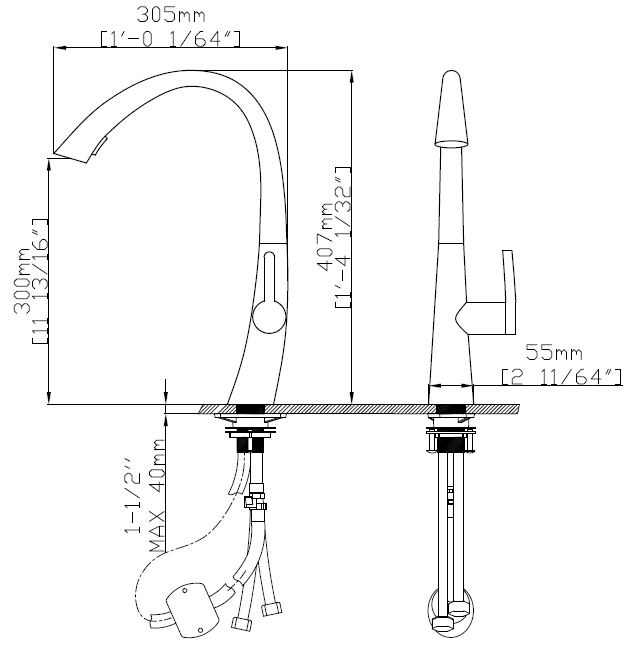

* 16" Total height,11" spout heightand 8" spout length

* Two function spray head

* Valve: ceramic cartridge

* Brass waterway,Zinc handle

* Flow Rate 1.8gpm@60PSI

* Braided Hose: hot and cold supply hose*2

* 100% pressure system tested


Details

1.Main body Material: 59 brass
2.Surface treatment:

3.Handle material:zinc alloy
4.Elbow pipe:stainless steel 201
5.Spray head:ABS two function
6.Galvanized coating:nickel 8um;chrome 0.25um
7.24h acid salt spray test passed
8.Valve:ceramic cartridge(cUPC certification passed)
9.Aerator:Neoperl ABS aerator
10.Flow rate:1.8gpm@60psi
11.Shank:60mm stainless steel 201(brass nut with screw+201 stainless steel spacer+rubber spacer+white spacer)
12.Brass hexagon cartridege nut

13.Supply hose:50cm*m10*1*11 stainless steel braidd hose(cUPC certification passed)

14.Pull out hose:1.5m quick conncect nylon hose

15.100% pressure system tested


Packing:
1.High quality non-woven bag packing with craft box
2.Spare parts: stainless steel knitted hose, O-ring, fixed gasket, stainless steel installation base
3.Inner box size:700*305*72mm
4.Outer box size:715*320*385mm(5 sets/carnton)
5.Packing can be changed as customer’s requirement
